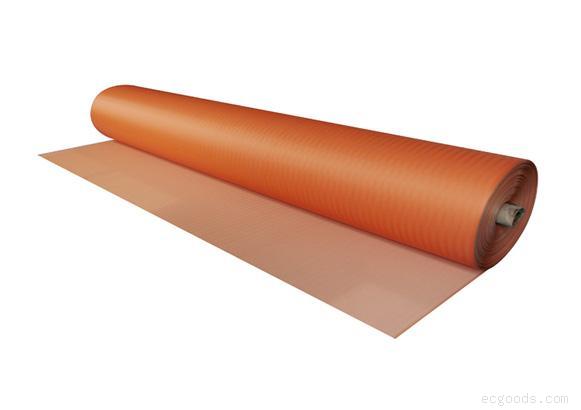

滤布Filter Cloth滤布：我公司代理各种规格型号的进口、国产滤布。Filter Cloth: our company acts as agent of different imported and made-in-China filter cloth.规格：宽度为3.5米以内、长度不限。Spec: width is 3.5m or below, no limit on length
胶带裙边Conveyor apron胶带裙边采用组合结构波形裙边与平行胶带粘合而成，这种结构伸缩性好，可以避免裙边经过辊筒改向破裂，且可有效防止料浆跑漏，便于更换。Adopting an integrated structure, bonding waveform apron with parallel rubber belt, this kind of conveyor apron has a good retr...
摩擦带friction band说明：摩擦带是安装在真空盒与胶带之间，并以水密封、润滑、冷却，减少胶带运行的阻力。Instruction: friction band is installed between vacuum box and adhesive belt with airproofing, lubrication and cooling to lessen resistance to adhesive belt.材质：橡胶+尼龙基片...

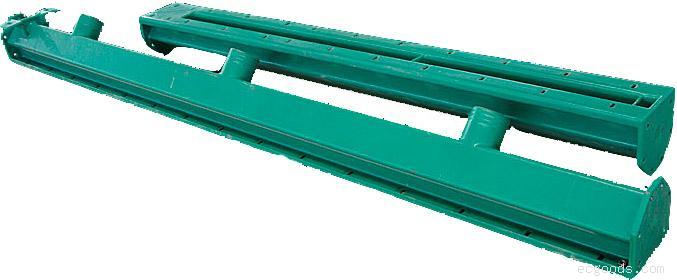

真空盒Vacuum box说明：真空盒是排液胶带底面滤液的汇集处。其中心线与排液带及中心排孔的中心线相重合。真空盒断面呈V形，过滤机运行时，真空盒固定不动。材质：304、316L、碳钢衬塑Instruction: filtrate at the bottom from discharging adhesive belt gathers at vacuum box, its central line,...

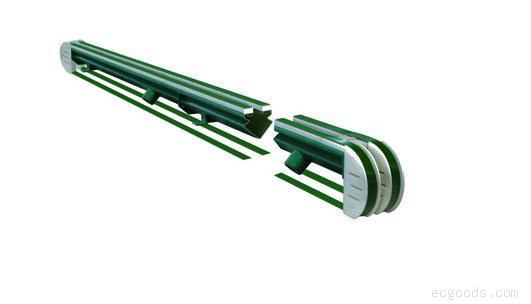

滑台Slipway说明：滑台是皮带脱水机运行是否平稳的关键部位，在滑台槽上安装了摩擦带并以水密封，密封水既可以作密封装置的润滑剂又可以作为冷却剂，形成一个非常有效的真空密封。Instruction: slipway is key part for stable running of belt hydroextractor, friction belt is installed on groo...
托辊：托动胶带及滤布运行。Supporting Roller: drive the belt and filter cloth to run材质：204、316L、碳钢包胶、碳钢衬塑Materials: 304, 316L, carbon steel encapsulation, carbon steel plastic lining
真空泵是利用水环工作方式，向腔体内注入工艺水，同时在叶轮的旋转下形成-0.05―0MPa的真空压力，是整套设备的真空源泉。Vacuum pump is uses water ring method, andinjected into the body cavity of the process water, while forms the -0.05－0MPa vacuum pressure under impeller's revolving,...

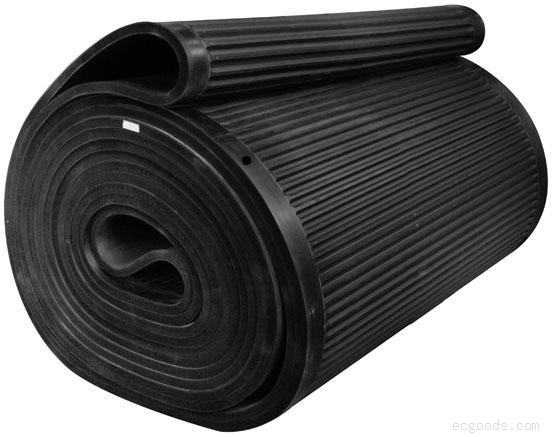

Rubber filter belt橡胶过滤带是与皮带脱水机（橡胶带式真空过滤机）配套的关键部件。骨架材料选用性能优异的聚酯帆布或涤纶布，胶料采用不同配方，生产采用一次硫化成型工艺。可满足不同工况条件下的使用。As the critical part for belt hydroextractor (rubber belt vacuum filter), rubber filt...
