翻盘式真空过滤机(PF系列) |
 |
 供应商参考报价：面议 |
|
|
|
| 联系人： |
|
赖经理 |
| 所在城市： |
|
浙江省 杭州市 |
| 详细地址： |
|
杭州市九环路9号浙江省国家大学科技园B座五楼 |
| 公司网站： |
|
www.hzglsb.com |
| 电子邮件： |
|
hzfilter@126.com |
| 公司电话： |
|
0572-5682609 |
| 传真： |
|
0572-5682607 |
|
|
|
|
|
|
| 详细信息 |
|
 |

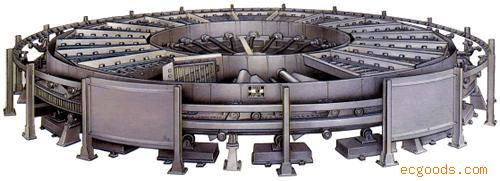

产品简介：该机型是一种连续运行的高效真空过滤设备。由若干个可倾翻卸料的扇形过滤盘，安置在环形内外框架上，并与位于内框架中心的错气盘连接而成。本机型可以多次滤饼洗涤，具有处理量大、收得率高、调速方便、操作简单等特点。
适用范围：该机型选用高级耐酸不锈钢，已广泛被磷肥行业用于磷酸与磷石膏的分离，也可用于冶金、化工、制药等颗粒粗且不均匀的悬浮液分离。
主要材质：该机型主要材质选用304、316L不锈钢。 |
Introduction: this mode is an efficient vacuum filter unit that can be running continually. With several fan-shaped filter disks, which may overturn unloaded materials, installed on the annular internal and external frames, and can be connected with the defect air disk located in the center of the internal frame. Filter cake of this unit may be washed several times and it enjoys features of large treatment volume, high recycling rate, easy speed regulation and simple operations etc.
Application: With high-class acid-resistant stainless steel, this unit is widely used in separation of phosphorous acid and phosphoric plaster in phosphoric fertilizer industry. It may also be used in separation of suspension with coarse and unevenparticles as in metallurgy, chemical industry and pharmaceuticals etc.
Main material: 304, 316L stainless steel. |
| 技术参数(Technical parameter)： |
|
|
PF5
|
PF14
|
PF18
|
PF34
|
PF42
|
PF55
|
PF80
|
|
总过滤面积(M2)
Total filer area
|
6.5
|
14
|
18
|
34
|
42
|
55
|
80
|
|
有效过滤面积(M2)
Effective filter area
|
5
|
11
|
15
|
28
|
35
|
46
|
71
|
|
滤盘数
Count of filter disks
|
16
|
16
|
18
|
20
|
20
|
20
|
24
|
|
转速(R/MIN)
Rotation speed
|
0.2/0.5
|
0.2/0.5
|
0.2/0.5
|
0.2/0.5
|
0.2/0.5
|
0.2/0.5
|
0.1/0.50
|
|
功率(KW)
Power
|
1.5
|
4
|
4
|
5.5
|
7.5
|
11
|
11
|
|
|
 |
|
|
|
 |
