转台（平盘过滤机）(ZL系列) - 杭州科力化工设备有限公司

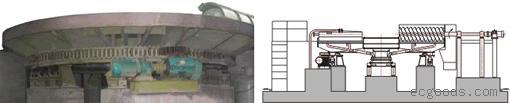

    产品简介：ZL系列转台(平盘)式真空过滤机是一种连续运行的高效过滤设备，在水平放置的主转盘上环形安置若干扇形滤室，滤室上部配有滤板、滤网、滤布；滤室下部有出液管，与错气盘连接。需过滤的料浆由上部加料斗连续加入，经过滤后，滤液由下部的出液管流经错气盘至气液分离器；滤饼经多次洗涤并吸干后由螺旋出料器输送出料。过滤机水平回转一周，完成加料—(反吹)—过滤—洗涤—吸干—出料等基本工艺过程。主转台及卸料螺杆的转速均为变频调速，以满足不同工艺操作需要。
    适用范围：转台真空过滤机具有结构简单、工艺适应性好、运转平稳、脱水快、洗涤效果好的特点，对于脱浆快的悬浮液，更有单位时间处理量大的优点，特别适用于洗涤要求高，含中粗颗粒料浆的过滤。适用如磷酸、钛***、氧化铝、无机盐、精细化工、冶金、选矿等工业领域的液固分离。
    主要材质：本机所用主要材质，根据介质的腐蚀性可选用：(1)304，316L不锈钢；(2)碳钢衬胶及非金属组合；(3)对于强腐蚀介质选用钛材及非金属组合。

    Introduction: ZL Series Rotary disk vacuum filter is a kind of high-efficient filter, which can operate in all conditions.Several sector filter chambers are installed on the horizontal rotary disk. On top of the chambers, there are filter board, filter net and filter cloth, while at the bottom of the chambers there are discharge pipes connected to gas disks. Raw materials to be filtered are fed into the feeder, and reach the solid-liquid separator after passing through the discharge pipes. After several times of cleaning by the filter cake, materials are dried and discharged by the screw discharger. The filter spins horizontally to go through the basic procedure of feeding, blowing(optional), filtering, cleaning, drying and discharging. The main disk and discharge screw are operated at a frequency-converted speed to meet different process needs.
    Application:Rotary disk vacuum filter is characterized by its simple structure, good adaptability, stable performance, quick dehydration and efficiency of cleaning.It is advantageous in handling a large quantity of suspension with rapid desizing in unit time. It is especially applicable for filtering of materials composed of medium-and-large size articles, which have higher requirments for cleaning, and also applicable for solid-liquid separation of phosphoric acid, titanium dioxide, alumina, inorganic salt, fine chemistry, metallurgy and mine extraction, etc.
    Main material: The major components of rotary disk vacuum filter are divided into two types according to their causticity:(1)304,316L stainless steel;(2)combination of carbon steel lining and non-metal materials;(3)strong corrosive medium, such ascombination of titanium material and non-metal materials.

技术参数(Technical parameter)：

		5	10	15	25	40	60	80	120
过滤面积 ┫ Filter Area		5	10	15	25	40	60	80	120
操作真空度 Mpa Vacuum Status		0.045～0.065
过滤强度 kg/m²h Filter Strength		600～1000
滤饼厚度 mm Thickness of Filter Cake		30～60
功率 KW	转台 Turret	2.2	4	4	5.5	7.5	7.5	7.5	11
功率 KW	卸料 Discharging of Material	2.2	4	4	7.5	11	11	11	15
主台转速 rmp Rotary Speed of Turret		0.2～1.2
转台直径 m Diameter of Turret		3	4	4.6	6	7.8	9.2	10.8	12.8
转台真空盘数 n Number of Vacuum Disk on the Turret		18	18	18	20	32	32	36	36
设备重量 T Weight of Equipment		6.8	9.3	12.5	19.1	27.6	41	56.5	78
